320 Km
250W
20x4"
25 Km/h
Hydraulic
400 lb

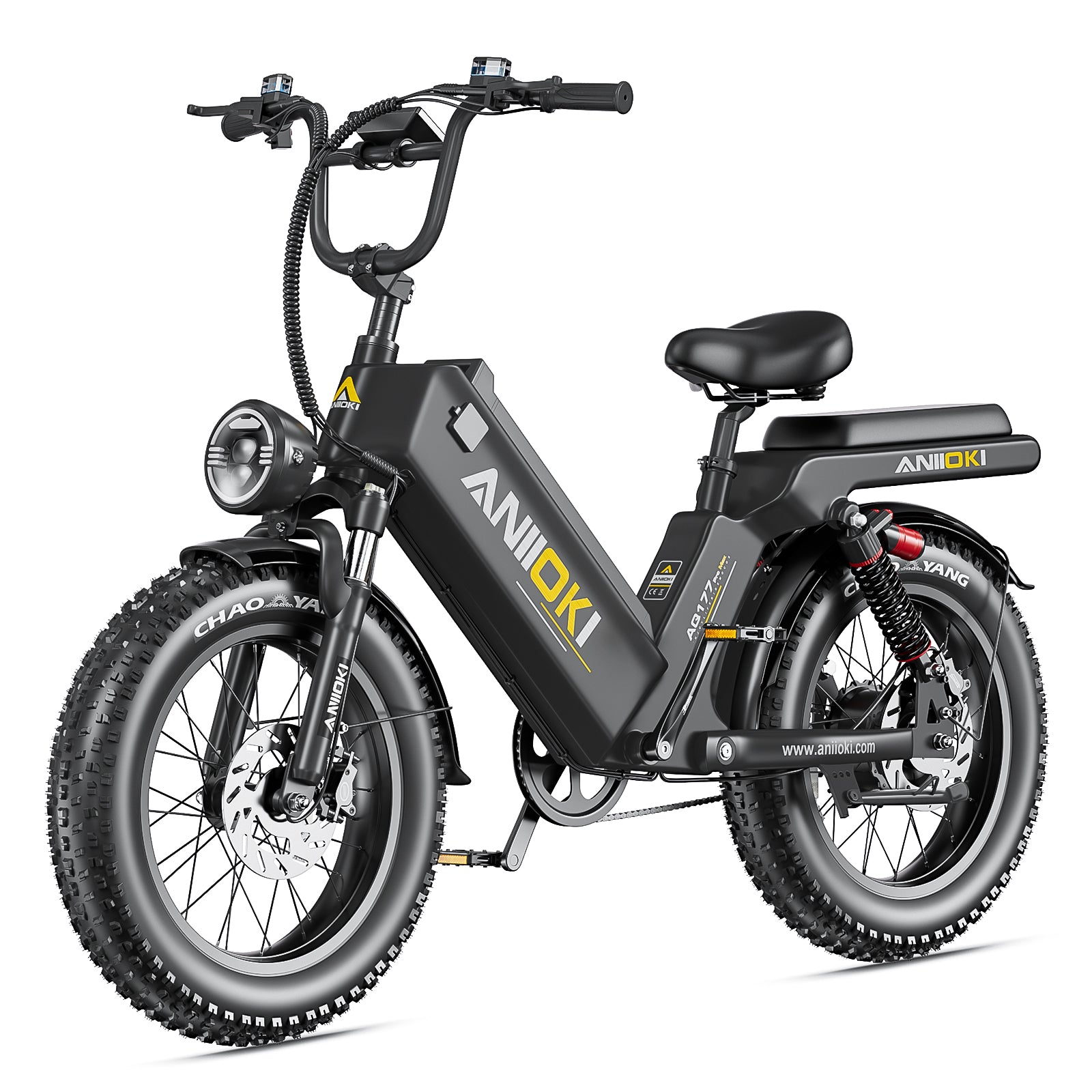

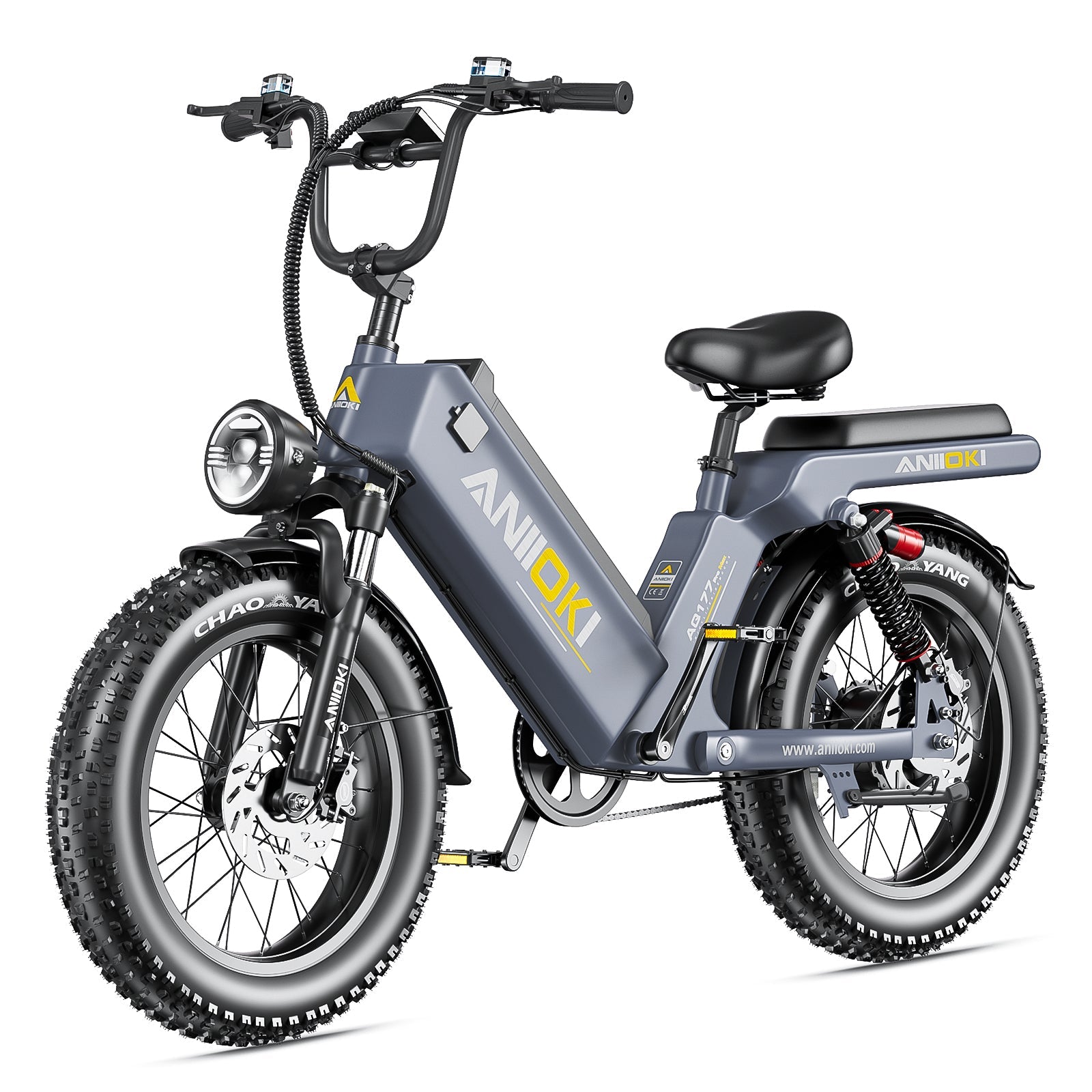

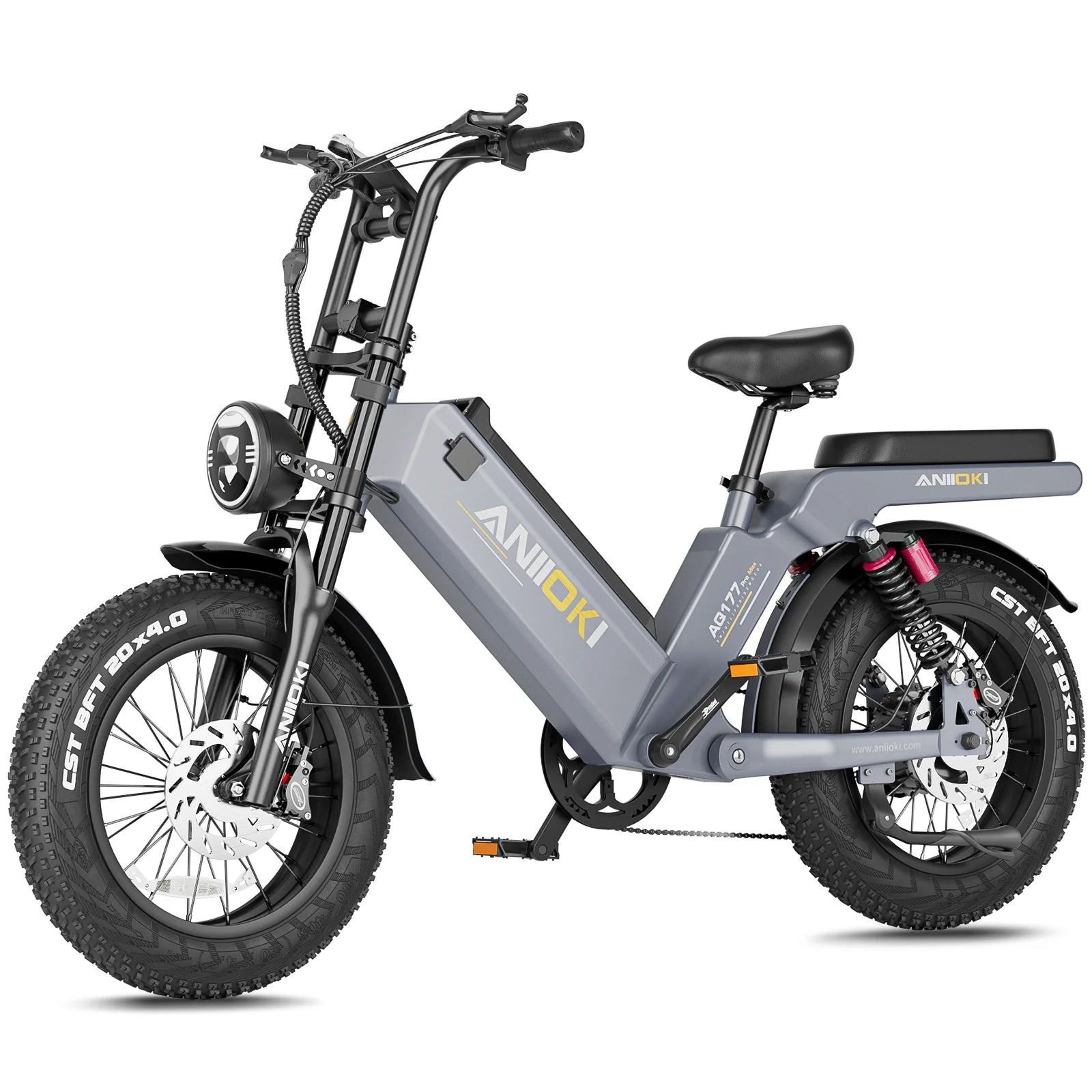

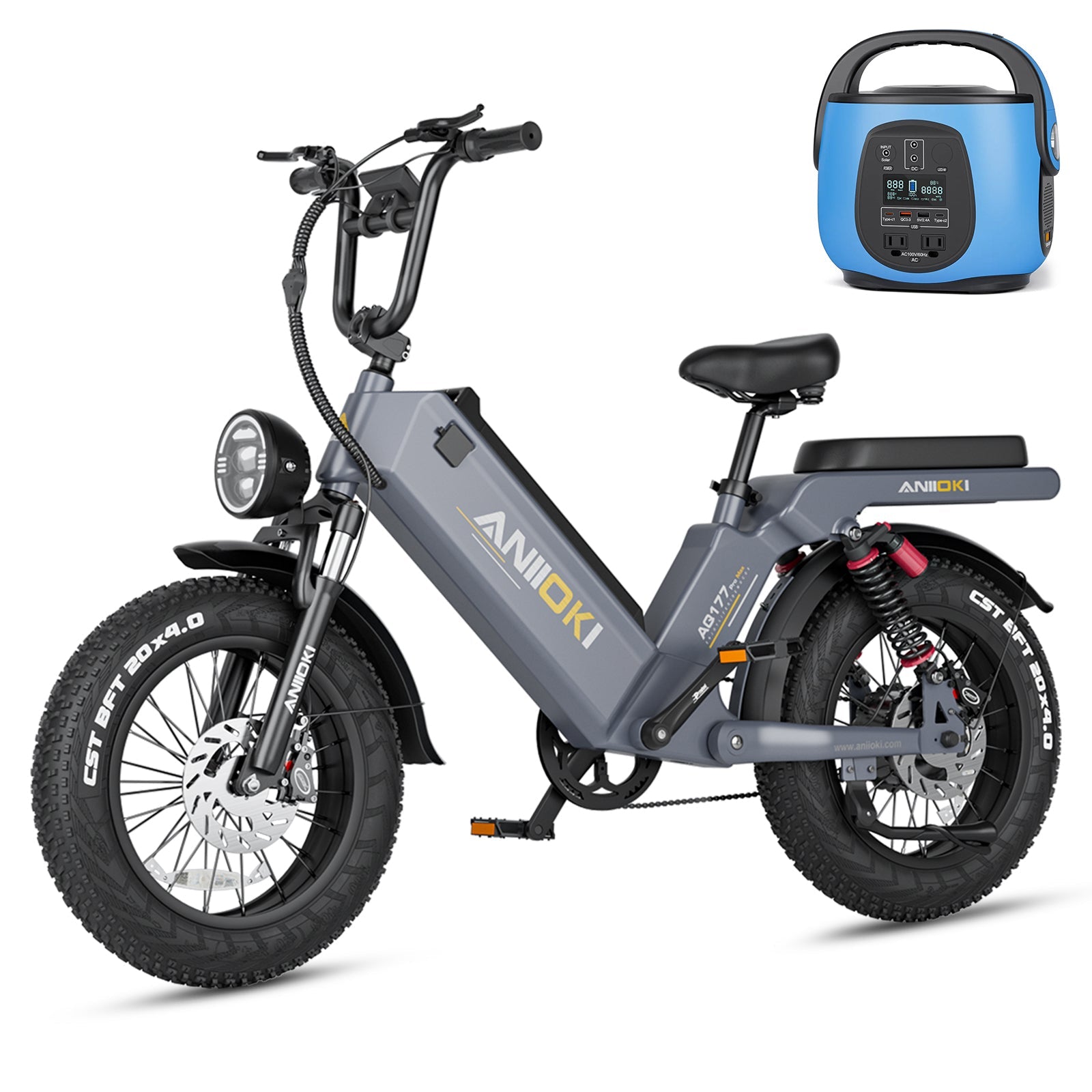

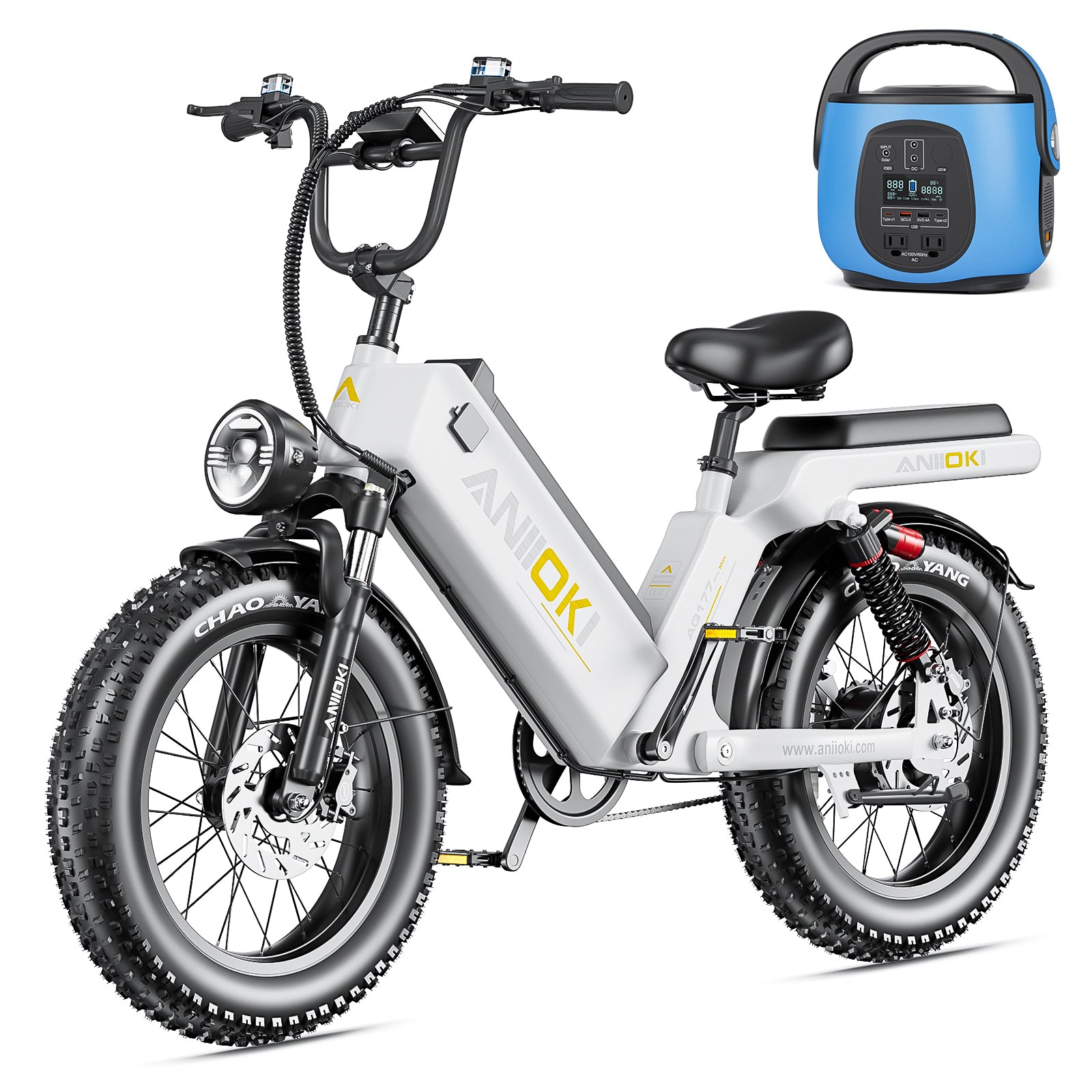

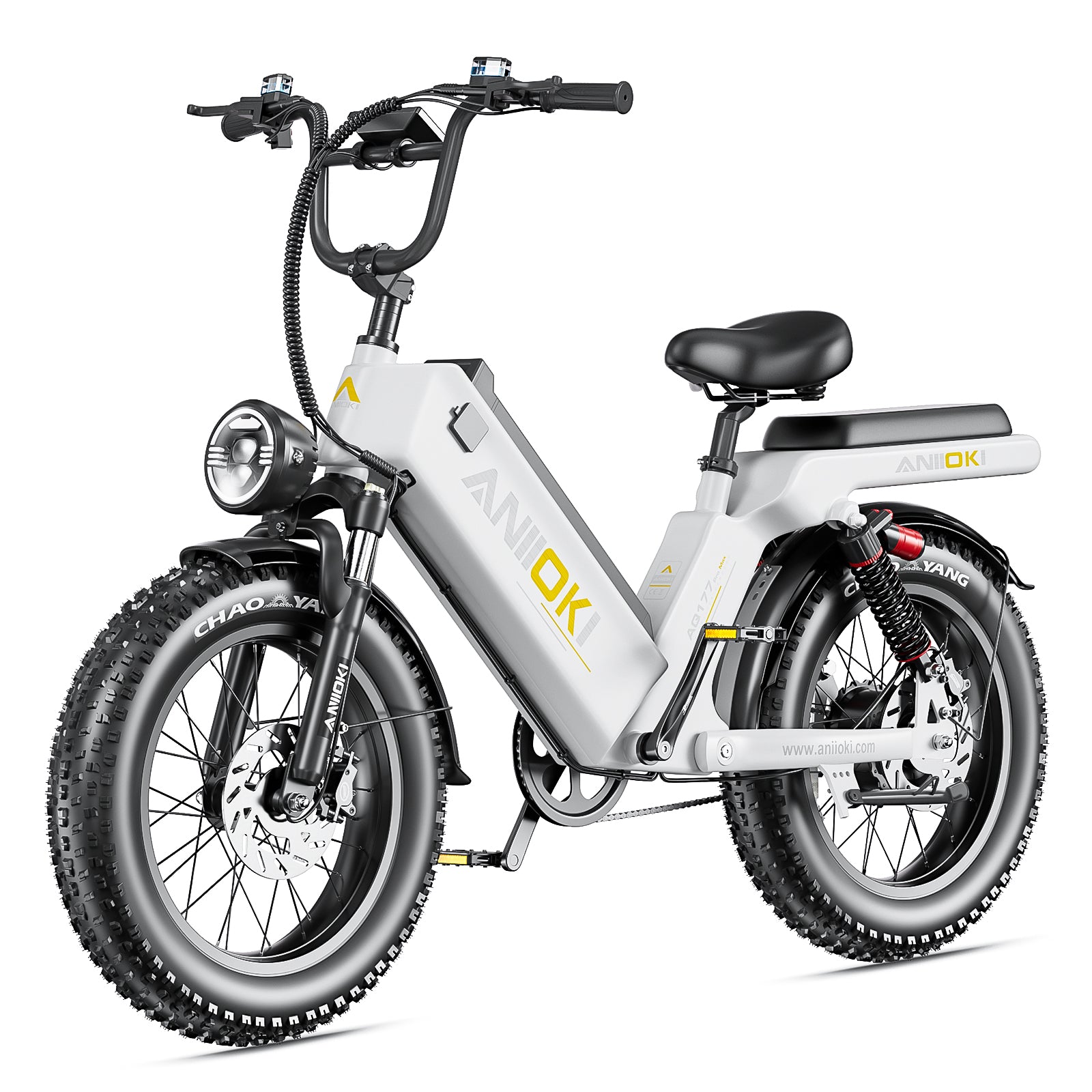

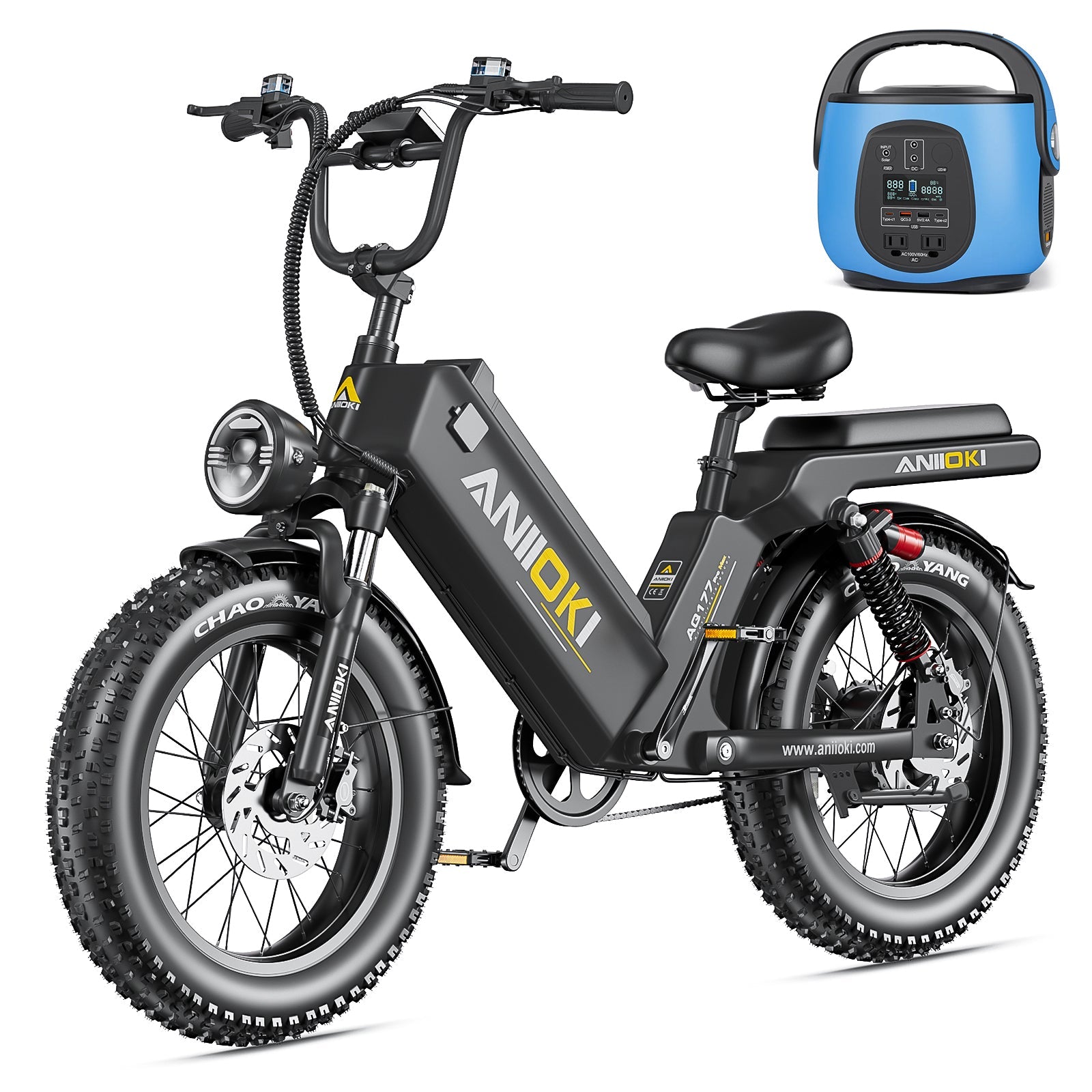

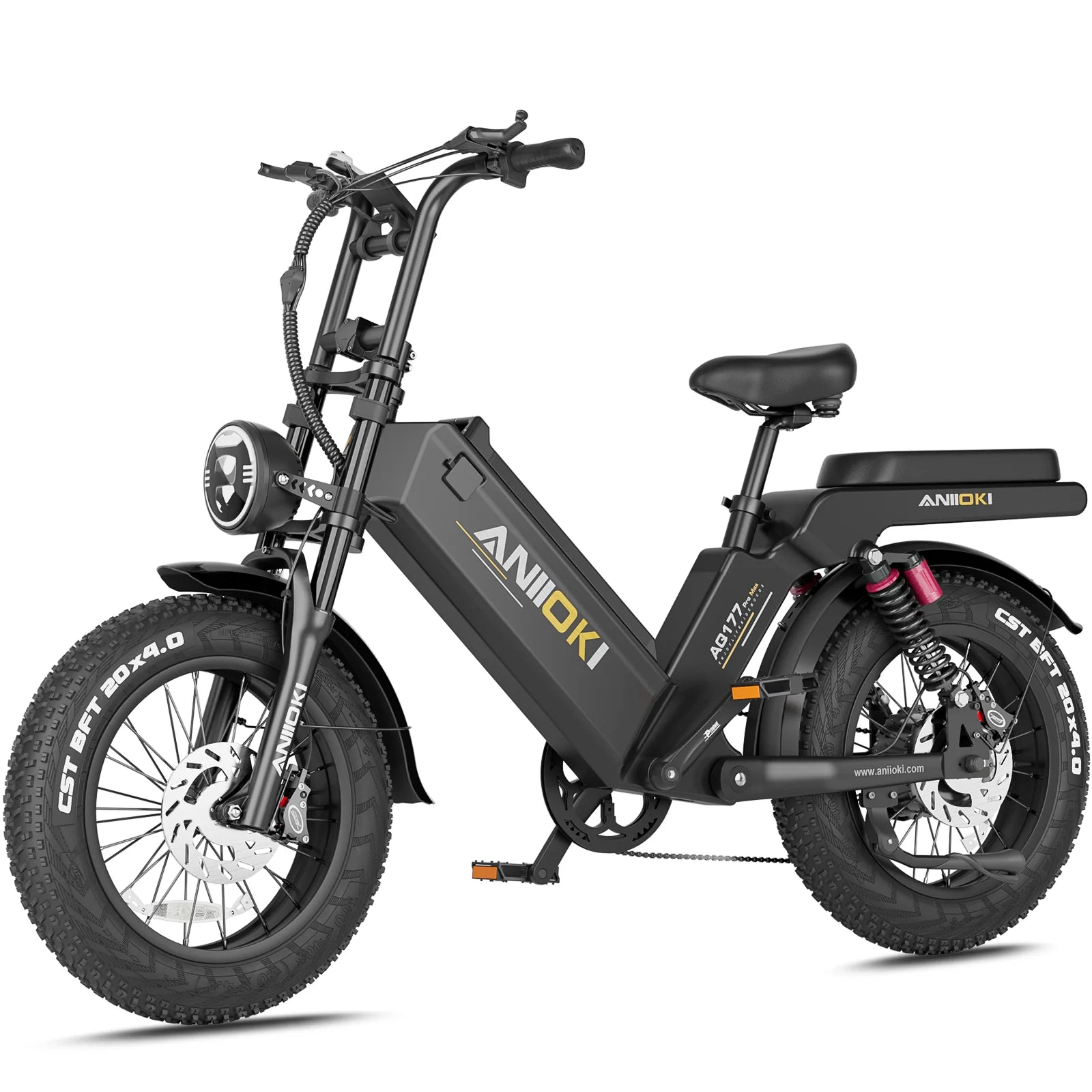

ANIIOKI AQ177 Pro Max
320 Km
250W
20x4"
25 Km/h
Hydraulic
400 lb
ANIIOKI AQ177 Pro Max

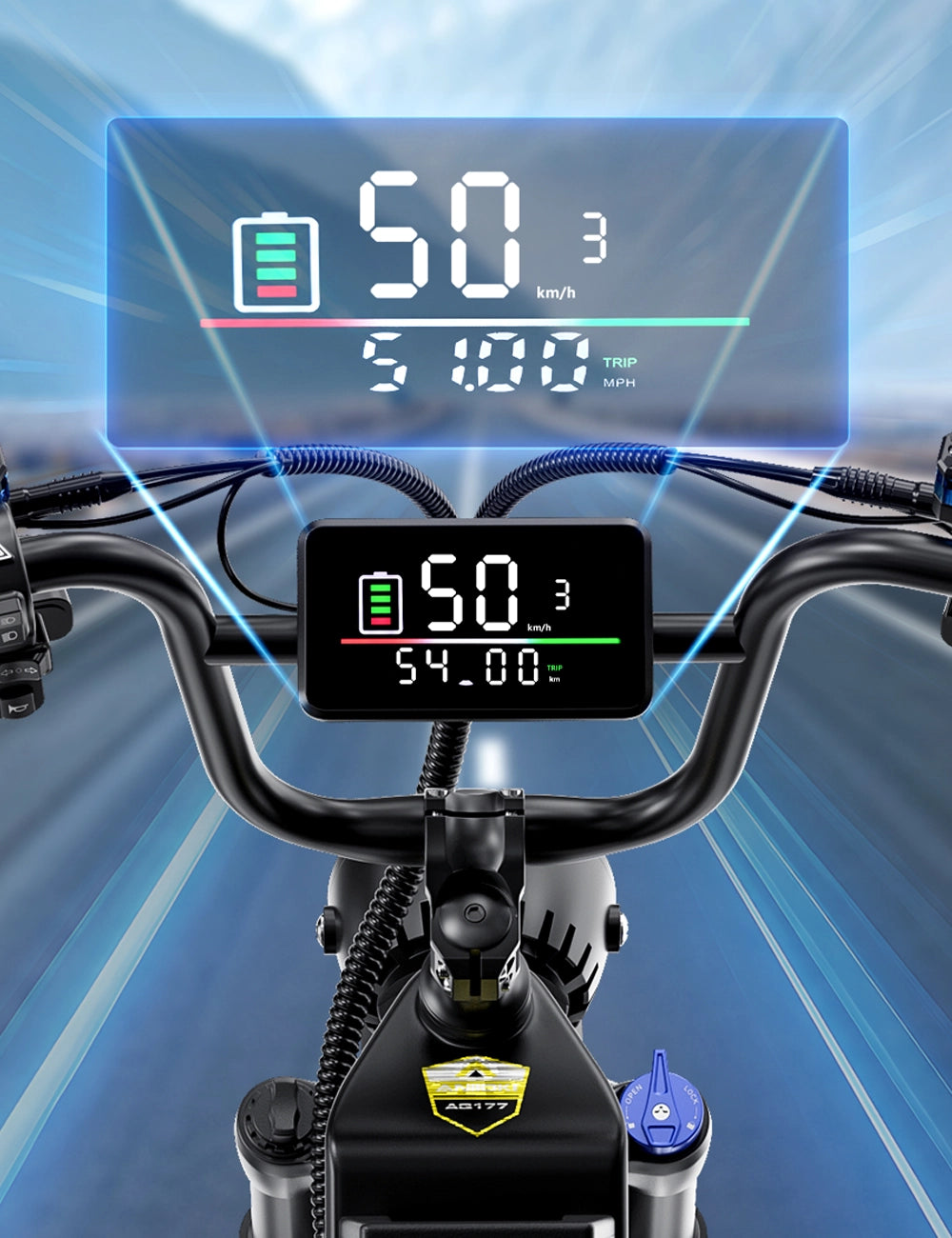

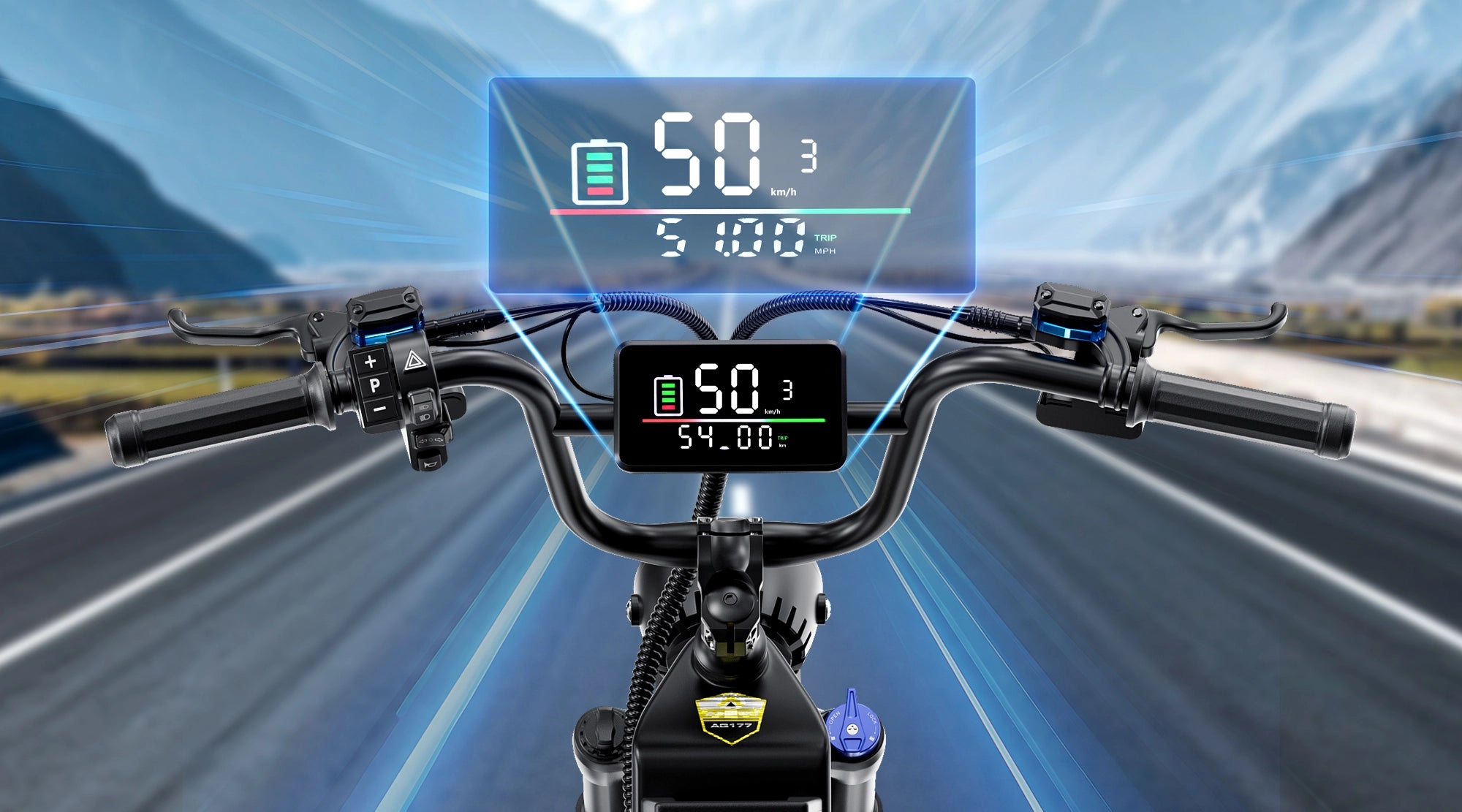

5.2 Inch Display
Big Digits for Easy Reading
The color LCD screen displays three assist levels (1, 2, and 3), current speed, battery level, odometer, fault indicators, assist mode, and more, making it easy to track your ride.
Quality In Details

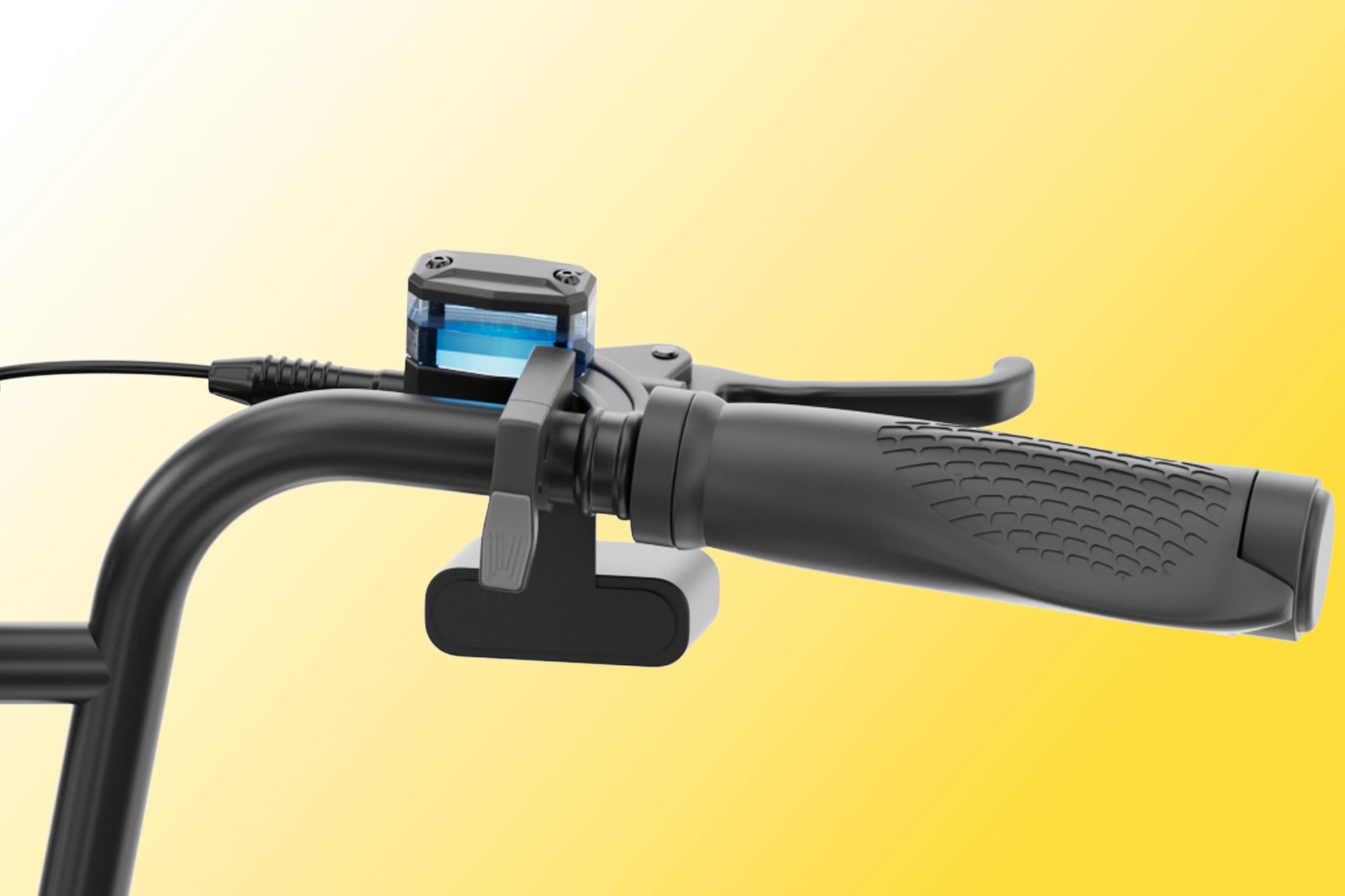

Thumb Throttle
The thumb throttle is made from high-strength materials with an anti-slip pad, delivering smooth control and reducing hand fatigue on long rides.

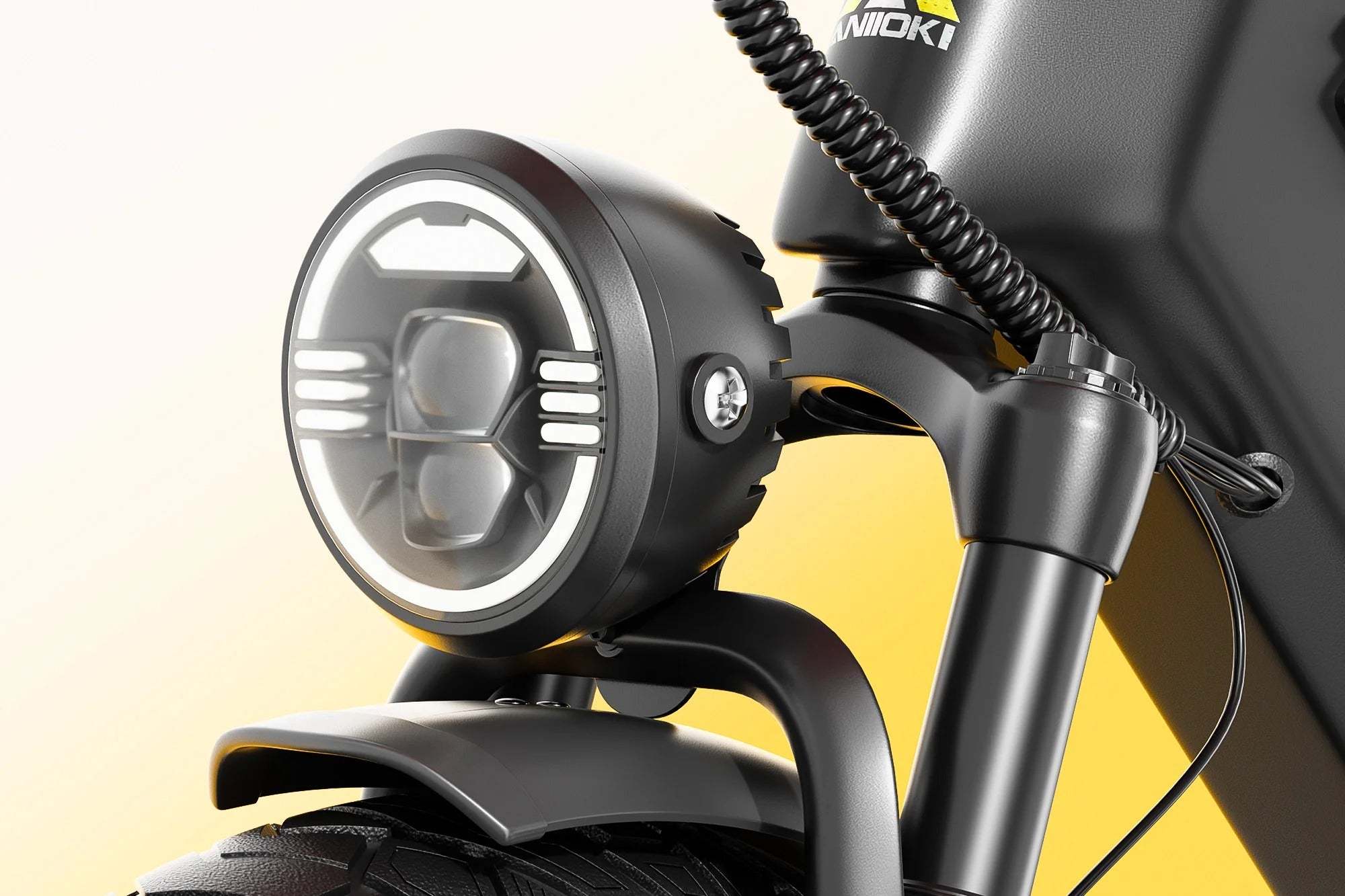

Bright Headlights
Moto-style headlight with LED lighting provides bright and clear visibilityfor safer riding at night or in low-light conditions.

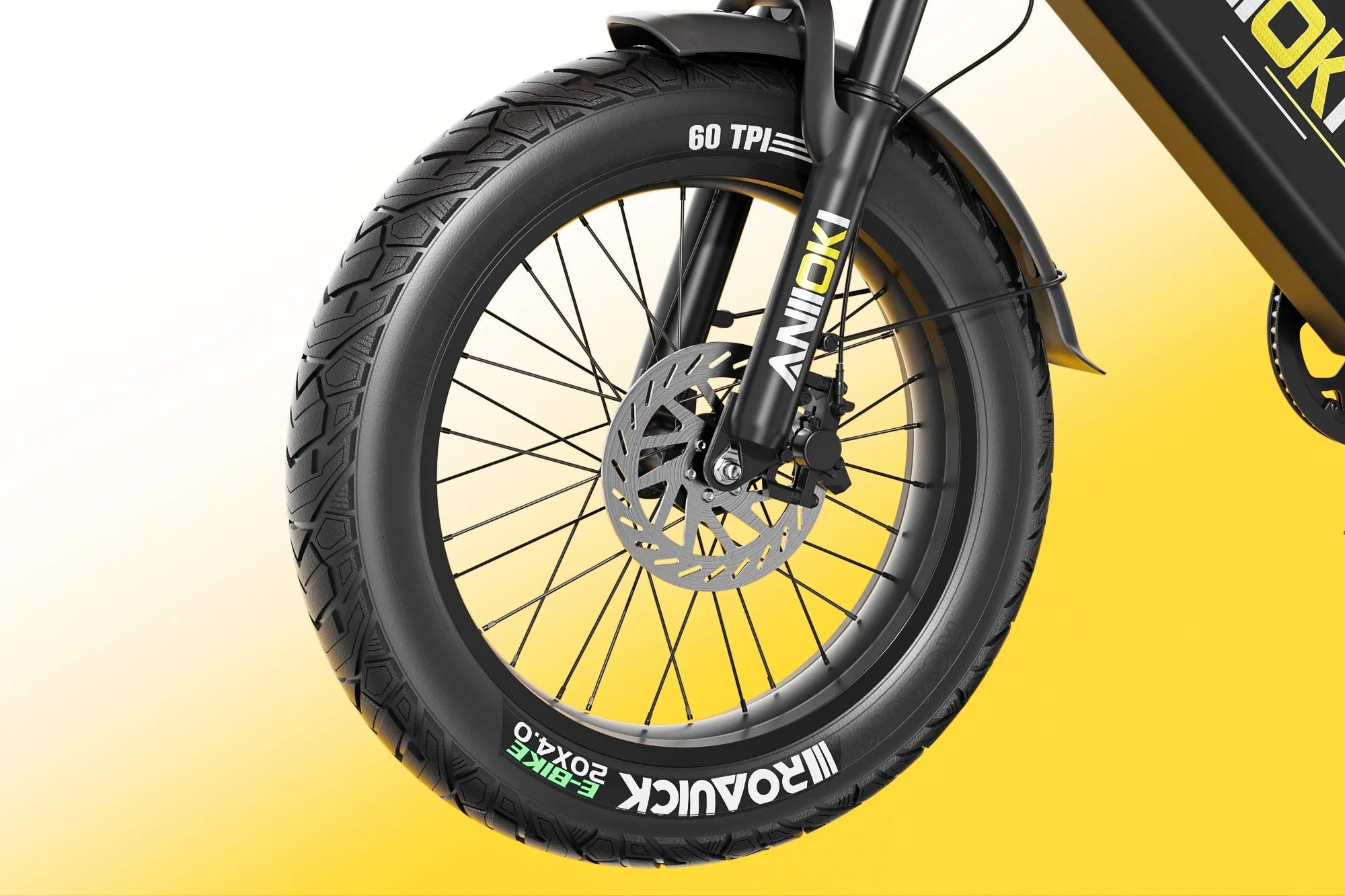

20"x4" Fat Tires
20"x4" puncture-proof fat tire, provide a stable grip on any terrain, including snow, beaches, mountain roads.

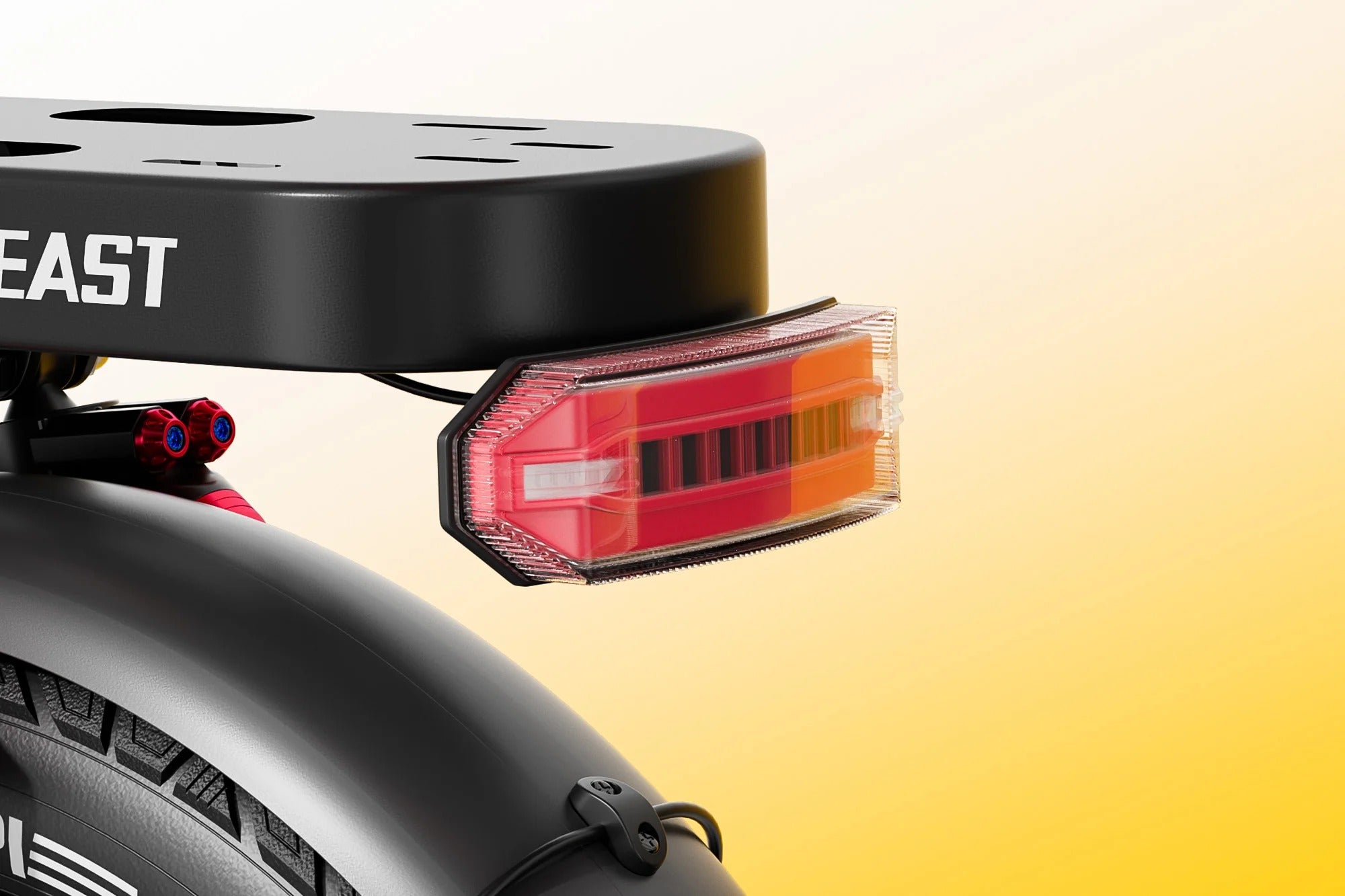

Brake &Turn Lights
Integrated turn signals and brake lights enhance safety by clearly signaling braking, position, and turning intentions to traffic.

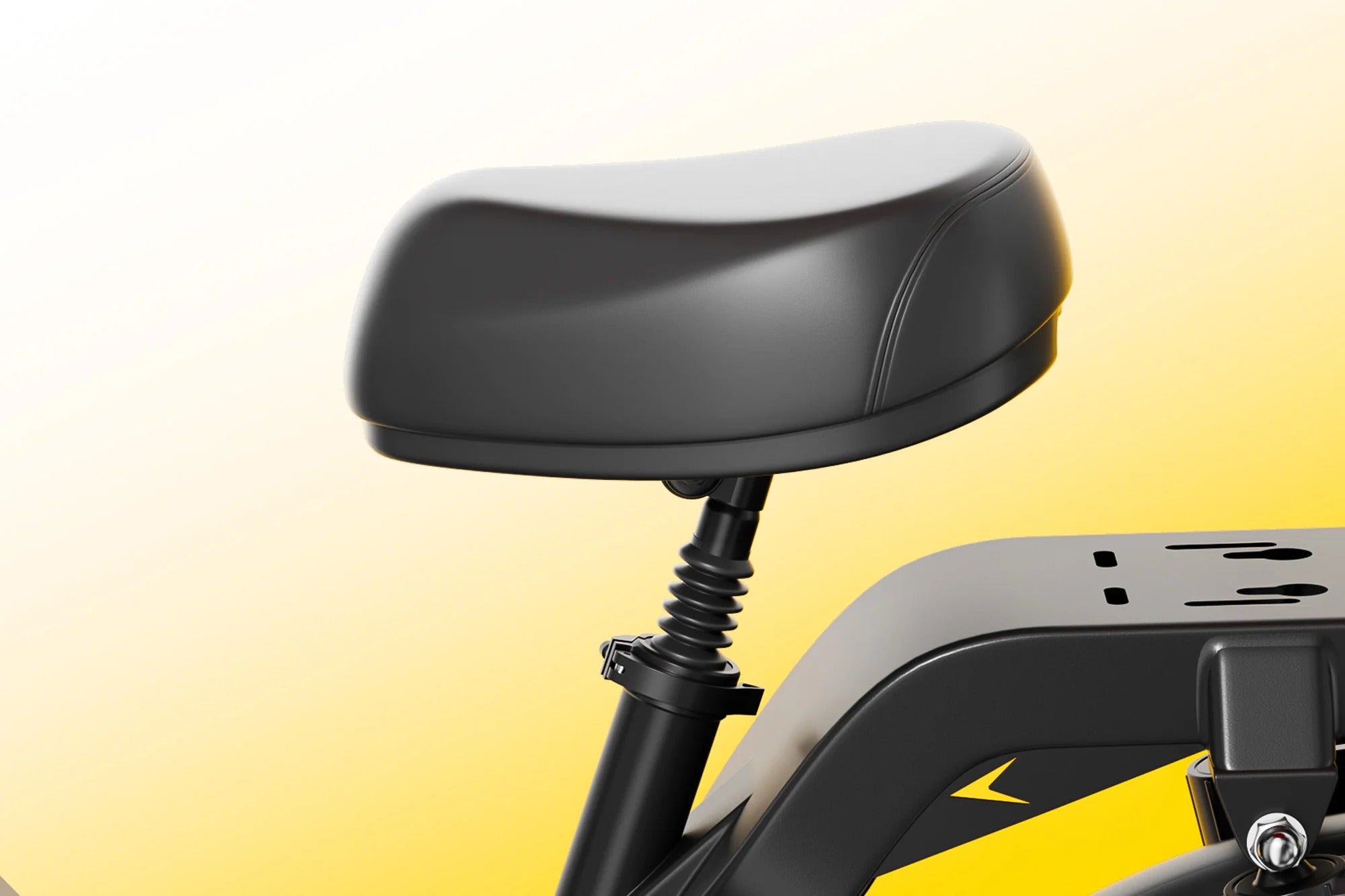

Ergonomic Saddle
High-density memory foam and gel contour to your body. Enjoy cloud-like comfort and pressure relief on long-distance rides.

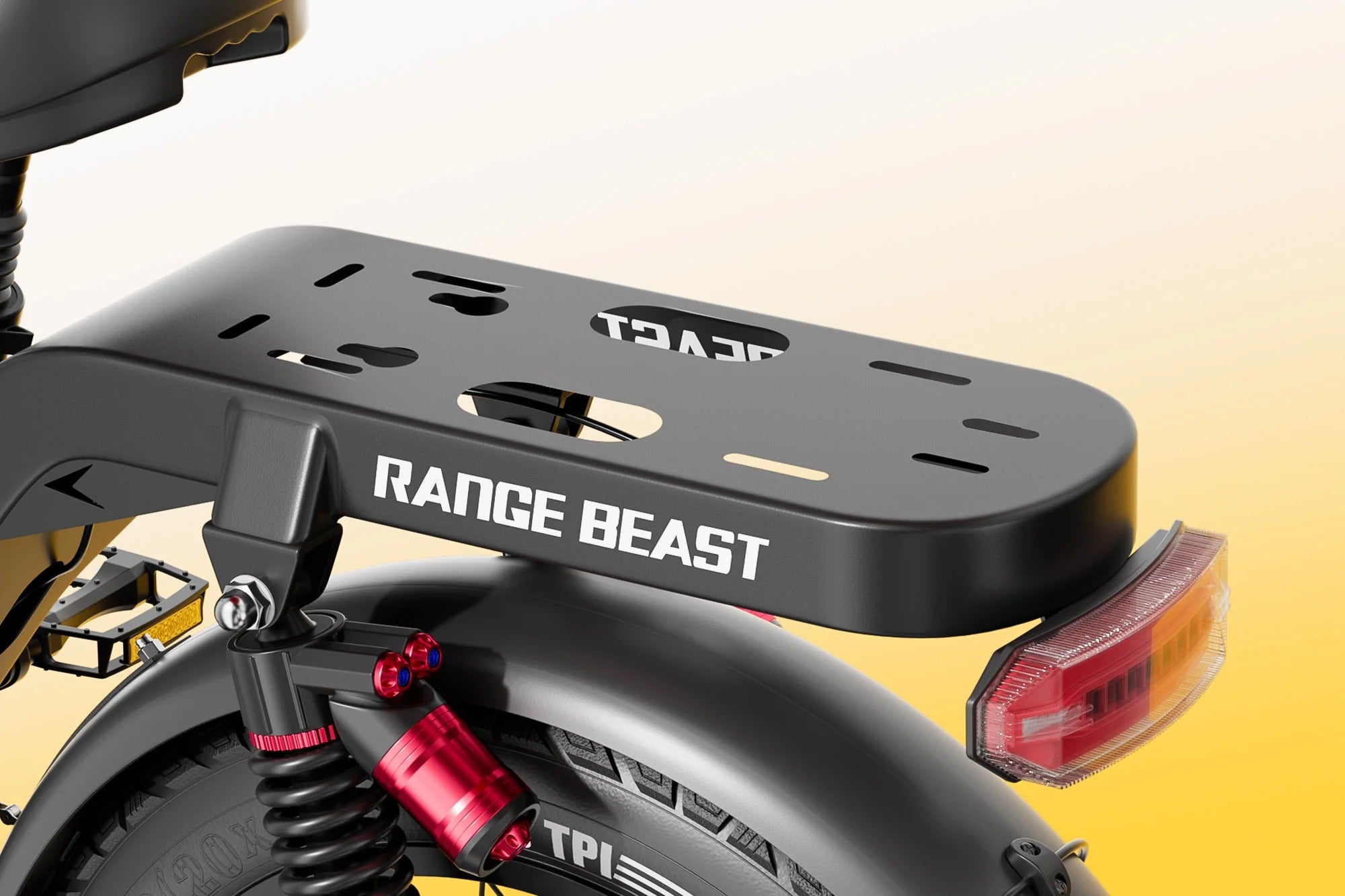

Multi-functional Rear Seat
The multi-functional rear seat features multiple screw holes for easy installation of racks or storage baskets—perfect for carrying shopping bags or daily essentials.
Product Details
eBike Size
A. Total Length: 68.5"(174cm)
B. Wheel Base: 47.6"(121cm)
C. Handlebar Height: 43.3"(110cm)
D. Standover Height: 26.0"(66cm)
E. Reach: 18.5"(47cm)
F. Minimum Seat Height: 31.9"(81cm)
G. Maximum Seat Height: 39.4"(100cm)
H. Handlebar Length: 28.3"(72cm)
I. Rear rack height: 31.1"(79cm)
Recommended Rider Height：5′3″--6'5″or 160cm-196cm
Max. Load Capacity：≤ 400 LBS
General Info
Top Speed: 25km/h;
Range Per Charge: 260 - 320 kilometers with PAS, or 100 - 130 kilometers w/o PAS
Rider Height: 5'3"-6'5"
Total Weight Limit: ≤ 400 LBS
Frameset
Frame: High carbon steel
Fork: Hydraulic Fork, w/ lockout
Rear: Adjustable Suspension Shock
Frame Style: Step-Through
Wheelset

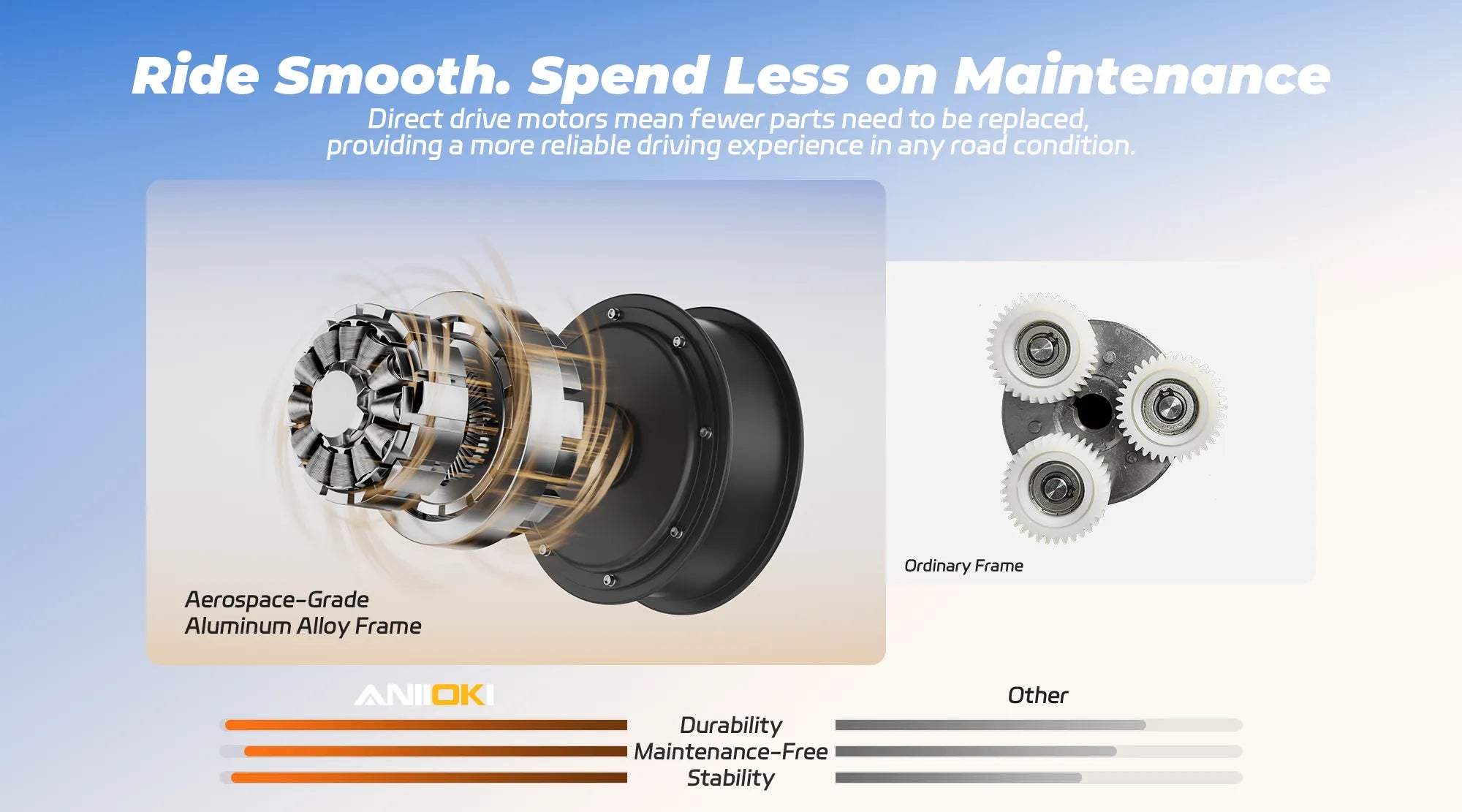

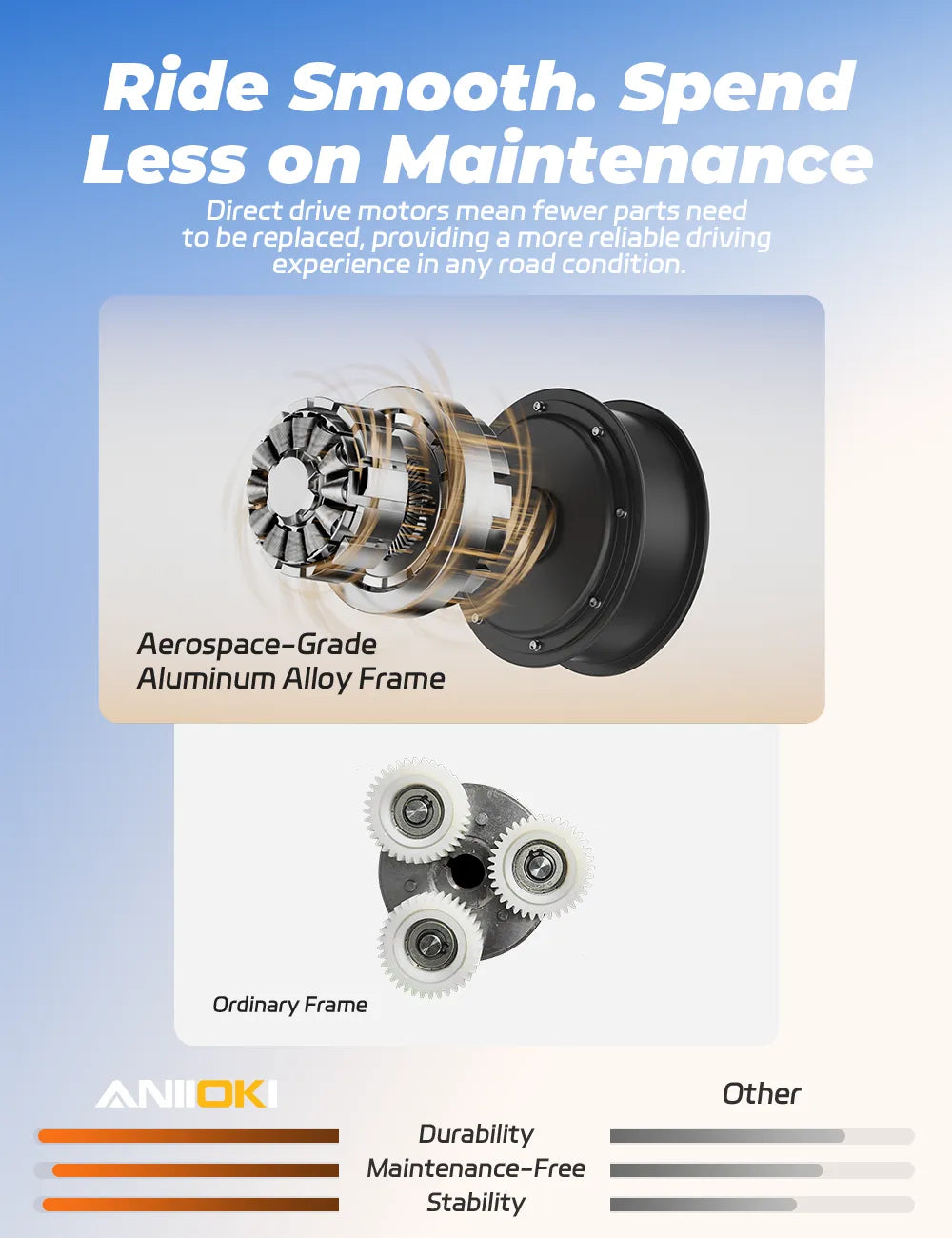

Motor Type: Direct drive motor, IPX6
Motor: 1200W Motor,Double wall aluminum
Torque: 90Nm--100Nm
Maximum Climbing Degree: 20°--30°
Tires: Puncture protection, 20"x4.0" fat tires
Ebike System
Battery: 48V 60Ah(2880Wh)
Battery Weight: 60Ah(28lbs)
Charger: 54.6V 8A;Quick charger, 7--9H charge time
Controller: 54.6 8A Controller
Cells Type: Lithium-ion pouch cells, Grade A
Throttle: Full-twist Throttle
Battery Lifespan: 3000 charge cycles to 80% of capacity
Display Type: 5.2" color display
PAS Levels: 3 Levels twist

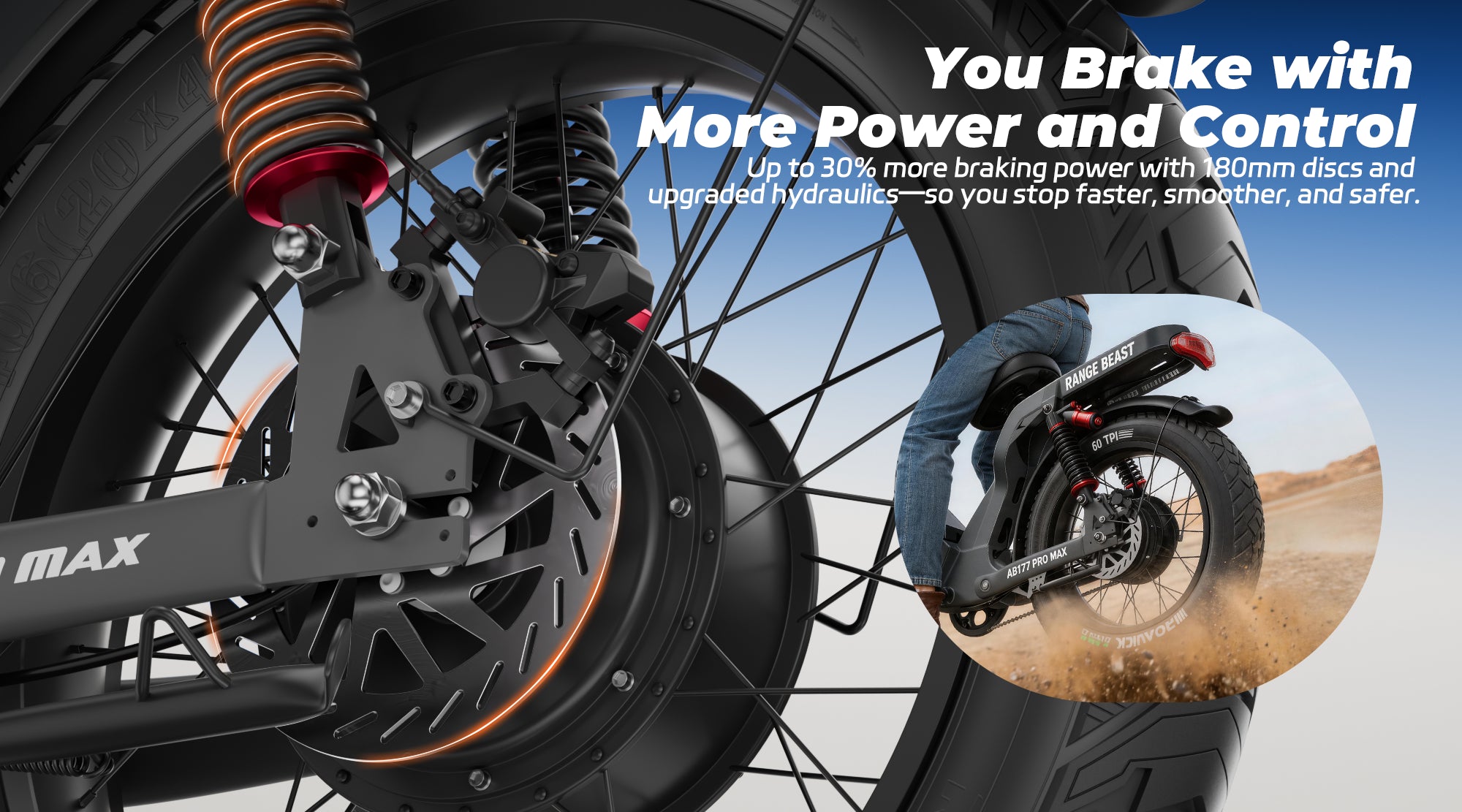

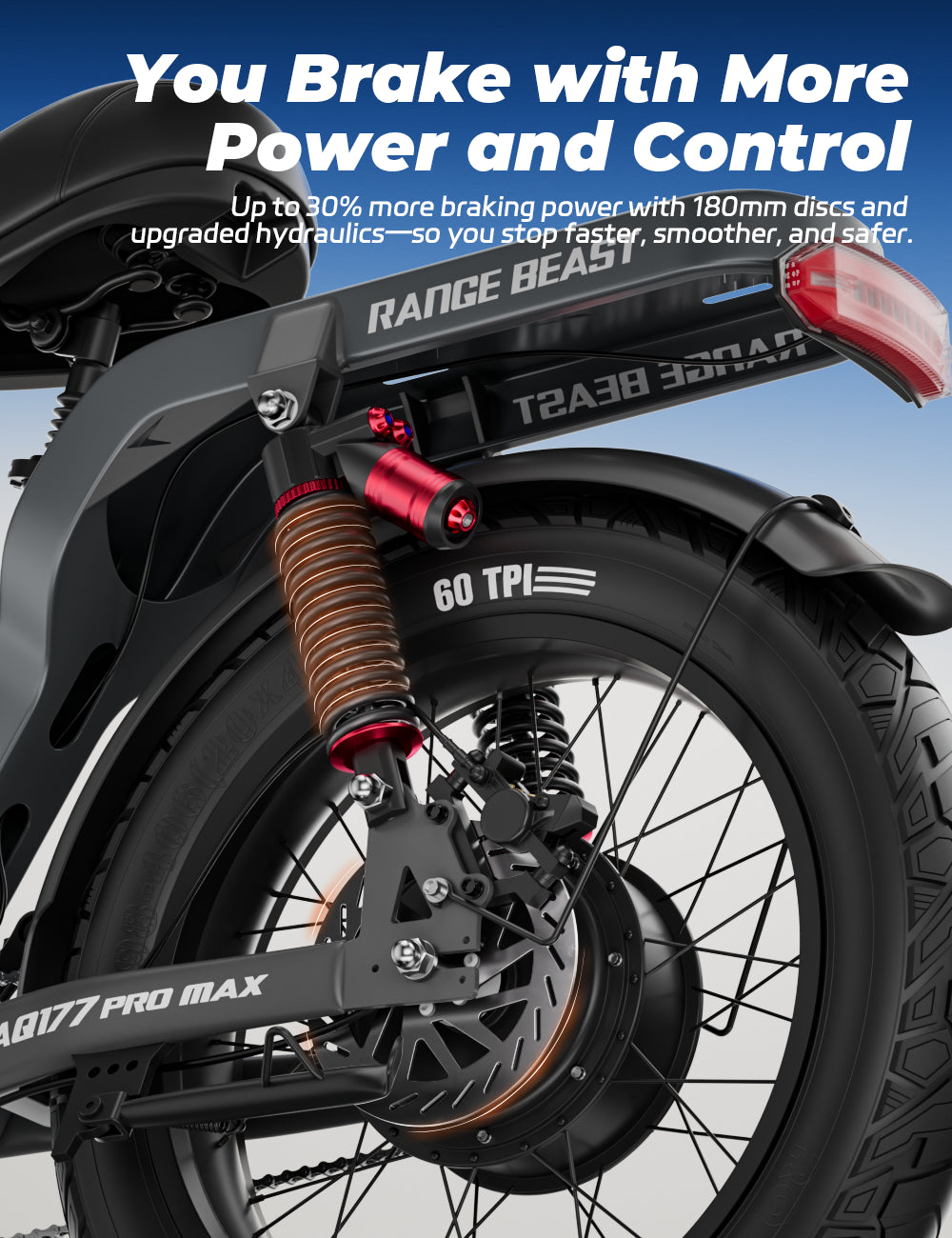

Brakes
Brake System: Hydraulic Brake System
Front Brake: 180mm rotors and custom two-piston calipers
Rear Brake: 180mm rotors and custom two-piston calipers
Brake Rotors: 180mm (φ) x 3.0mm (t) rotors
Drivetrain
Derailleur: Only 3 gears（Not Shimano 7 speed)
Chainring: 48T
Crankset: 180mm crank arm
Weight & Dimensions
Weight:
61 Kg/134.5 lbs
Weight limit:≤ 400 LBS
Dimensions:
eBike Body: 60 × 12.8 × 30.3 inches
Two Packages Inside
eBike
Charger
User Manual
Tool Kits
Battery
Battery keys
